 Eltek 48Vdc 12kW Power System with Comprehensive Load & Battery Distribution
Caracteristicas Galería Descripción de producto Clasificaciones y revisión Pida una cita
Caracteristicas
Especificaciones
Nombre del producto: Núcleo de alimentación de 48 V CC y 12 kW.
Marca: Eltek
Altura del sistema: Montaje en rack de alta densidad 5U
Potencia de salida total: 12 kW (máx.)
Voltaje de salida nominal: 48vdc
Distribución de batería: 4 disyuntores de batería 125A/1P
Eficiencia: Hasta 96,5% (tecnología de alta eficiencia)
Temperatura de funcionamiento: -40°C a +75°C (-40°F a +167°F)
Información básica
Nombre de la marca: Eltek
Certificación: CE
Número de modelo: Sistema Powercore ltek de 48Vcc y 12kW
Pago y Envío Términos
Detalles de empaquetado: cajas de cartón
Tiempo de entrega: 1-2 semanas
Condiciones de pago: T/T
Capacidad de la fuente: 500 juegos por mes
Descripción de producto

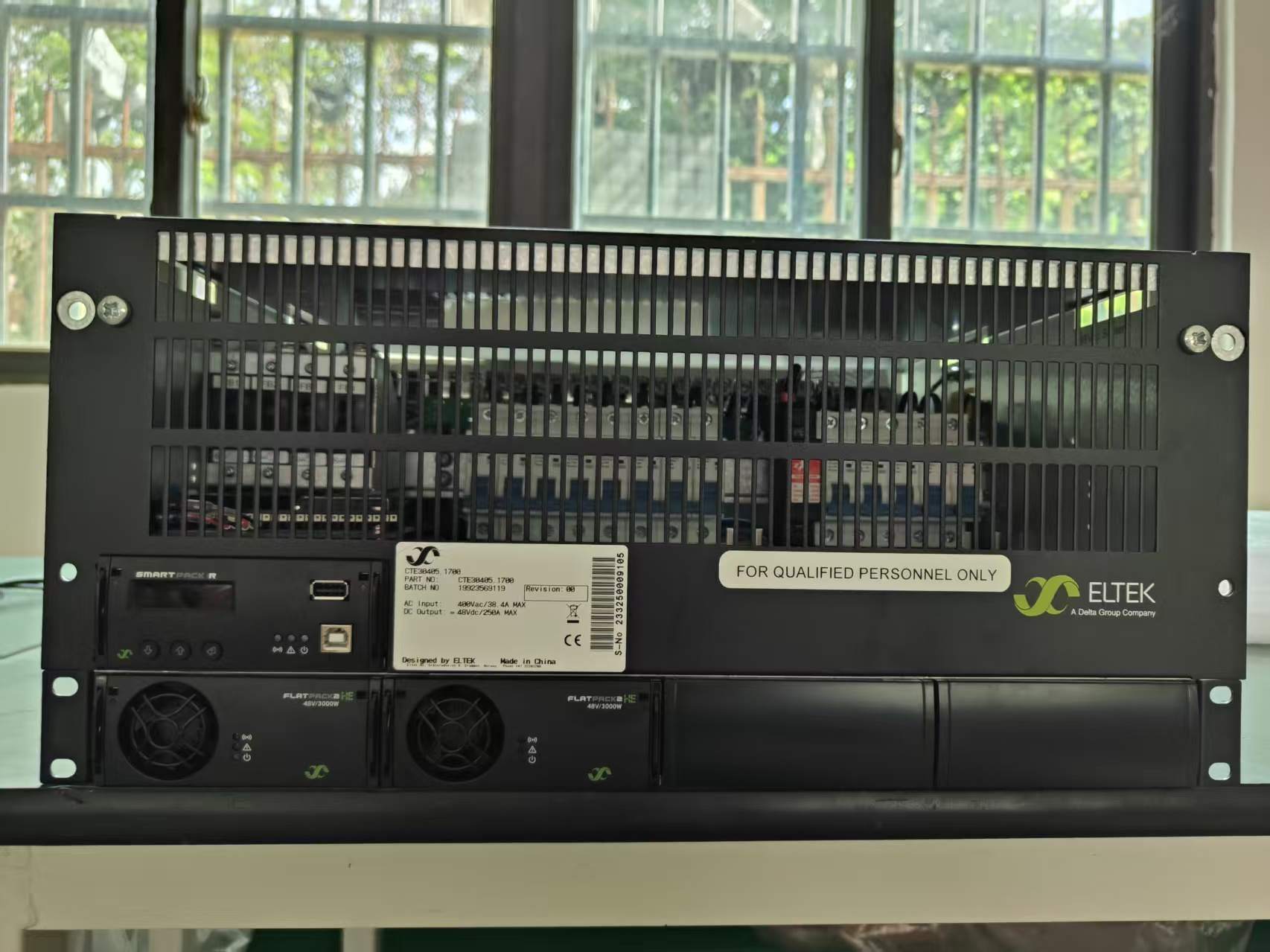

 Eltek 48Vdc 12kW Power System with Comprehensive Load & Battery Distribution 0


We specialize in providing Original Eltek 48Vdc 12kW Powercore Systems, complete with genuine Flatpack2 48/3000 HE rectifiers (P/N: 241119.105). Unlike refurbished or third-party alternatives, our genuine Eltek systems adhere to the strictest international standards, including CE and UL certifications, guaranteeing that all electrical specifications meet the manufacturer's original data sheet. Each system undergoes rigorous factory testing before shipment to ensure the Smartpack R controller and distribution breakers are fully functional. We maintain a significant inventory to support bulk procurement needs for large-scale network rollouts, offering competitive B2B pricing and global logistics support. By investing in original Eltek hardware, you are secured by the brand’s global reputation for engineering excellence and a significantly higher MTBF (Mean Time Between Failures), ensuring your project remains on schedule and within budget.

Specification:


Product Name 48Vdc 12kW Powercore
Brand Eltek
System Height 5U High-Density Rack Mount
Total Output Power 12kW (Max)
Nominal Output Voltage 48Vdc (Adjustable range typically 43.2 - 58Vdc)
Rectifier Modules 4 x Flatpack2 48/3000 HE (P/N: 241119.105)
Rectifier Slots 4 x Rectifier Slots (Full occupancy)
System Controller Smartpack R Intelligent Controller
Battery Distribution 4 x 125A/1P Battery Breakers
NPL Distribution 2 x 63A, 3 x 25A (Non-Priority Load)
Load Distribution 2 x 40A, 4 x 25A, 2 x 16A (No-Priority Load)
Spare Slots 2 x Spare (F1-F10) & 2 x Spare (F11-F17)
Efficiency Up to 96.5% (High Efficiency technology)
Operating Temperature -40°C to +75°C (-40°F to +167°F)

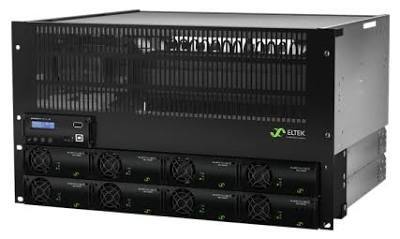

 Eltek 48Vdc 12kW Power System with Comprehensive Load & Battery Distribution 1

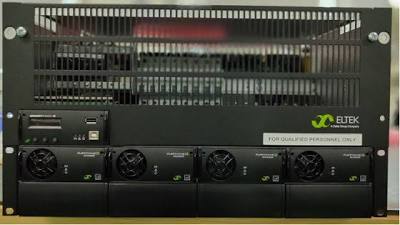

 Eltek 48Vdc 12kW Power System with Comprehensive Load & Battery Distribution 2

 Eltek 48Vdc 12kW Power System with Comprehensive Load & Battery Distribution 3

 Eltek 48Vdc 12kW Power System with Comprehensive Load & Battery Distribution 4

 Eltek 48Vdc 12kW Power System with Comprehensive Load & Battery Distribution 5

 Eltek 48Vdc 12kW Power System with Comprehensive Load & Battery Distribution 6

 Eltek 48Vdc 12kW Power System with Comprehensive Load & Battery Distribution 7

 Eltek 48Vdc 12kW Power System with Comprehensive Load & Battery Distribution 8

Complete Telecom Solutions
Telecommunication companies worldwide benefit from our comprehensive solutions. We begin with detailed site surveys and develop professional plans that meet customer expectations. Our technical support and maintenance services ensure efficient operations. With an experienced team and global network of trusted partners, we deliver differentiated service that stands out in the market.

 Eltek 48Vdc 12kW Power System with Comprehensive Load & Battery Distribution 9

Are samples available?
Samples are available upon request. Sample pricing aligns with bulk orders, and freight costs are the responsibility of the recipient.
How does your company handle quality issues?
With 10+ years of industry experience, we prioritize accountability. For confirmed quality defects, we adhere to contract terms for resolution, supported by our dedicated after-sales team.
What is the quality assurance of your products?
100% original products in new packaging, each item tested pre-shipment to ensure functionality and quality standards.
What is the warranty period?
Our products come with a 12-month quality warranty.
How to process inferior products?
Within the warranty period, we cover return shipping costs for defective items and provide replacements.
